Aquasafe Lockers

Launch Design Studio

Features:

  • Available with Aluminium or 3mm Solid Grade Laminate carcass
  • Hardwearing and water resistant Solid Grade Laminate doors
  • Pre-assembled for ease of installation
  • Size and configuration flexibility
  • Various lock options
  • Available in over 30 laminate colours

Special Features:

  • Braille number plate option
  • Sport England compliant
  • Compatible with Aquabench seating
  • Complements cubicles

  • With our strong and sturdy Aquasafe Lockers you have the choice of a Solid Grade Laminate or Aluminium carcass. The locker framework extrusions are constructed from Satin Anodised Aluminium whilst the hinges are constructed from robust Stainless Steel.
  • Solid Grade Laminate lockers are available in a standard width of 305mm and 405mm however flexible size and configuration options are available upon request. Aluminium lockers are available in a standard width of 308mm and 408mm. Aquasafe lockers offer a 510mm depth in Solid Grade Laminate and a 505mm depth in Aluminium, both with a carcass height of 1800mm. Typical overall height of 1900mm is achieved when mounted on a 450mm bench or 100mm Solid Grade Laminate plinth.
  • Solid Grade Laminate Aquasafe lockers have 13mm Solid Grade Laminate shelves in Mercury that allow total sizing flexibility, whilst Aluminium lockers have light-grey injection-moulded shelves. Locker doors are supplied in robust 13mm Solid Grade Laminate with the core polished to a smooth profile and supplied with double coat hook for 1 tier, 2 tier and ‘Z’ shaped lockers. Recessed Stainless Steel door hinges provide a built-in ‘stop’ feature, limiting the door opening to 105º. One hinge per door is sprung.
  • There is a choice of lock options, including Hasp lock for the user’s own padlock, Cam-lock, Coin return, Coin retain and Digi lock. Framework is supplied in powder coated white, as standard
  • Aquasafe lockers are supplied with self-assembly 13mm Solid Grade plinths. These allow for simple site levelling during installation and provide a firm base onto which a skirting/floor finish by others can be applied. Alternatively the plinth fascia can be supplied to match locker doors.

Fixture 1

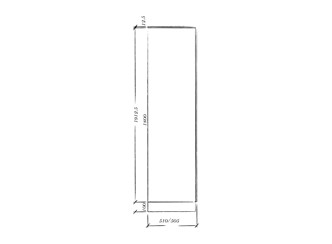

Locker Profile

Locker Profile

Fixture 1

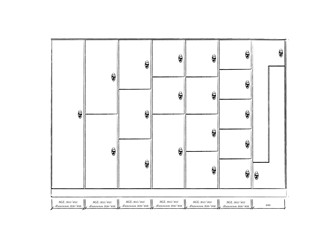

Locker Configuration

Locker Configuration

Fixture 1

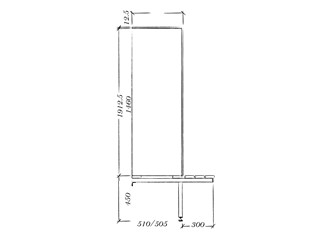

Locker on bench profile

Locker on bench profilee

Fixture 1

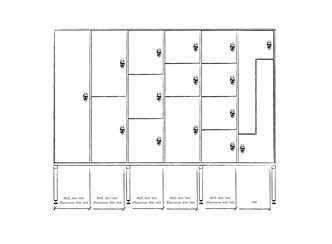

Locker on bench configurations

Locker on bench configurations
